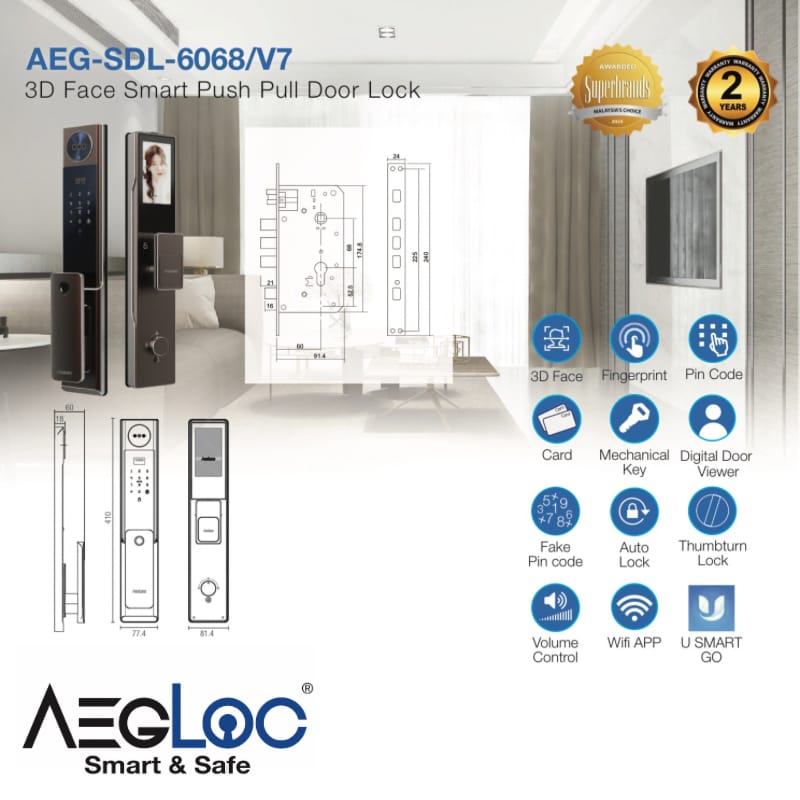

The AEGLOC SMART PUSH PULL LOCK AEG-SDL-6068/V7 is a modern, keyless electronic door lock designed for convenience and streamlined access. Its core function is a “push-pull” mechanism, allowing the door to be opened with a simple push from the inside and pulled from the outside after successful authentication, eliminating the need for a traditional handle. This sleek, vertically-oriented lock typically offers multiple smart entry methods, such as fingerprint recognition, passcodes, encrypted IC cards, and mechanical keys for backup. Constructed from durable materials like CNC Aluminium + Kunlun Glass, it provides enhanced security features including anti-peep passwords and a robust deadbolt, making it an ideal solution for upgrading residential, office, or hotel room doors to a more secure and futuristic access system.
Product Specification:
| Model | AEG-SDL-6068/V7 Mocha Bronze | ||
| Main Material | CNC Aluminium + Kunlun Glass | Kepad Type | Touchpad |
| Type | Electronic & Mechanical | Code Length | 6-9 Digits |
| Product Size | Front Body：81.4(w) x 413.4(h) x 19.5(D)mm Back Body：77.4(w) x 413.4(h) x 29.5(D)mm |
Code Capacity | 100 |
| Rejection Rate | < 0.01% | Card Type | Mifare/13.56 MHZ |
| Voice Guide | Yes | Card Capacity | 100 |
| Network Wifi | 2.4G | Fingerprint Sensor | Semiconductor |
| Emergency | Type C / Mechanical Key | Fingerprint Capacity | 100 |
| Display (LCD Screen) | OLED Screen (4.5”) | Face Capacity | 100 |
| Operating Temperature (°C) | -25-70°C | Battery | Lithium battery 5000mAh |
| Sharpness | 840*480 | Door Category | Wooden Door/Security Door |
| Pixel | 1000000 | Door Thickness (mm) | 38-120mm |
Download: AEGLOC Catalogue
