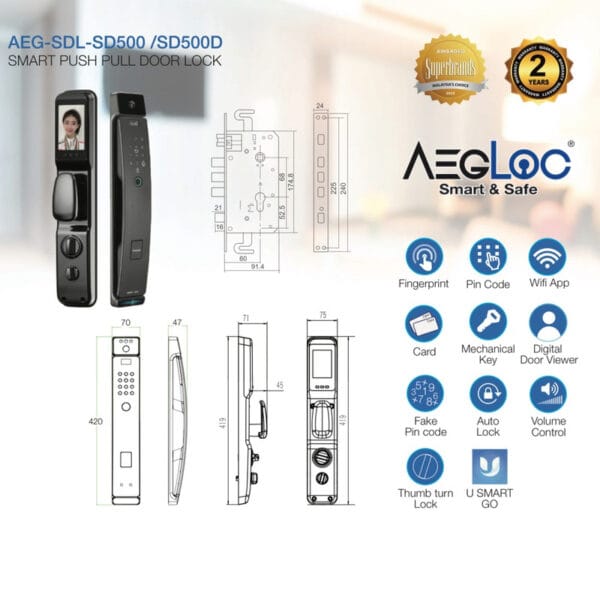

The AEGLOC SMART PUSH PULL DOOR LOCK AEG-SDL-6068/SD500 is a comprehensive digital access solution specifically engineered for commercial-grade “push-pull” style doors commonly found in offices, retail spaces, and modern residential entries. Access is granted primarily through a backlit digital keypad for PIN code entry, allowing for the management of numerous user codes while eliminating the need for traditional keys. The defining feature of this “push-pull” configuration is its ability to automatically unlock both the lever and the deadbolt simultaneously upon a successful code entry, enabling smooth, hands-free operation to push the door open or pull it closed without manually turning a lever. Built with a durable zinc alloy construction, it includes essential smart features like auto-relocking, low-battery warnings, and an emergency power backup, making it an ideal, professional-grade system for high-traffic environments that demand both superior security and seamless convenience.
Product Specification:
| Model | AEG-SDL-6068/SD500 / GREY | ||
| Main Material | Zinc Alloy | Screen | 0.96 inch |
| Type | Electronic & Mechanical | Code Length | 6-12 Digits |
| Product Size | 72(W) x 420(H) x48(D)mm | Code Capacity | 50 |
| Cut Sensing Distance | 0-40mm | Operating Temperature (°C） | -10-60°C |
| Voice Guide | Yes | Battery | Lithium Baterry, dc7.4v,4200mAh |
| Network Wifi | 2.4G | Emergency Battery | 5V (micro usb ) |
| Card Type | Mifare/13.56 MHZ | Door Category | Security door / Wooden door |
| Card Capacity | 50 pc | Door Thickness (mm) | 38-100mm |
| Fingerprint Sensor | Semiconductor | Camera Screen | 4 Inch |
| Door Category | 100pc | ||
